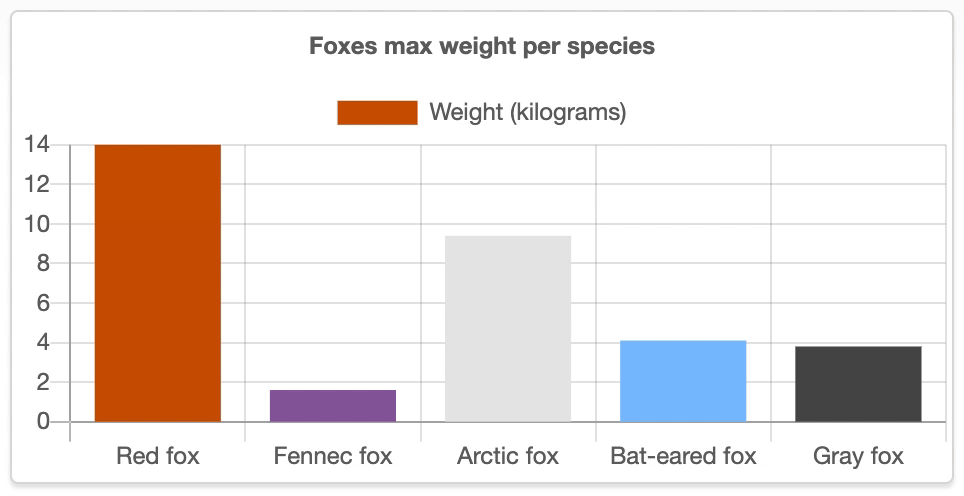

Chart.js – bar chart example


1. Create Lightning Web Component barChartComponent


2. Add canvas element inside barChartComponent.html

The HTML <canvas> element is used to draw graphics.

Adding lwc:dom=”manual” allows us to call appendChild() – which is used by the library.

<template>
    <div class="slds-card">
        <canvas lwc:dom="manual"></canvas>
    </div>
</template>
  • if there is no size set chart will get full size of parent
  • slds-card class will give us basic styling matching Salesforce standards

3. Import all necessary libraries – (Chart.js – integration)
4. Add chart build method

buildChart(){
    const context = this.template.querySelector('canvas').getContext('2d');

    new Chart(context, {
        type: 'bar',
        data: {
            labels: ['Red fox', 'Fennec fox', 'Arctic fox', 'Bat-eared fox', 'Gray fox'],
            datasets: [
                {
                    label: 'Weight (kilograms)',
                    backgroundColor: ['#cd5700', '#8e5ea2','#e6e6e6', '#80bfff', '#4d4d4d'],
                    data: [14, 1.6, 9.4, 4.1, 3.8]
                }
            ]
        },
        options: {
            title: {
                display: true,
                text: 'Foxes max weight per species'
            }
        }
    });
}

querySelector() – find element inside rendered component

getContext() – get access to canvas drawing functions


Data source: Wikipedia

Unknown's avatar Fox 23:04 on 7 December 2020

Chart.js – integration


Aura

<ltng:require scripts="{!join(',', $Resource.ChartJS, $Resource.ChartCSS)}"
              afterScriptsLoaded="{!c.init}"/>


Lightning Web Component

  • in order to load third party library we need to use loadScript and loadStyle methods
import { loadScript, loadStyle } from 'lightning/platformResourceLoader';

import chartJS from '@salesforce/resourceUrl/chartJS';
import chartCSS from '@salesforce/resourceUrl/chartCSS';
  • create promise to load resources
  • style injection must be turned off before creating the first chart
Promise.all([
    loadScript(this, chartJS),
    loadStyle(this, chartCSS)])
.then(() => {
    //disable automatic style injection
    window.Chart.platform.disableCSSInjection = true;

    //your code here
})
.catch(error => {
    alert(error);
});
